Surface Mount Adapters
-
SOIC-8 to 8-pin DIP Adapter – 970601
Select optionsConvert any surface mount component in the SOIC-8 package to an 8-pin DIP footprint with the BrownDog 970601 adapter. This adapter features direct pin-to-pin correspondence and a low profile, compact form factor. Available with a selection of optional audio op amps installed.
-
Single-to-dual Op-Amp Adapter – 020302
Select optionsThe BrownDog 020302 adapter integrates two single channel SOIC-8 op amps into a standard dual channel pinout in the 8-pin DIP footprint. One op amp mounts to the top surface (U1), and the other mounts to the bottom surface (U2). Available with optional audio op amps installed!
-
RC4136 Upgrade Adapter – 060601
Select optionsThe ‘4136 op amp is a 4 channel op amp in a 14-pin DIP package with a non-standard pinout as compared to conventional quad op amps. The BrownDog 060601 adapter replicates an RC4136 op amp using two dual channel op amps in the SOIC-8 package. Available with a selection of pre-mounted dual channel op amps.
-
Dual-to-quad Op-Amp Adapter – 070401
Select optionsThe BrownDog 070401 adapter replicates a standard quad (4 channel) op amp in a 14-pin DIP package using two dual channel op amps in the SOIC-8 package. This adapter is available by itself, or with a selection of dual channel op amps pre-mounted to it.
-
RC4739 Upgrade Adapter – 180801
Select optionsThe ‘4739 op amp is a 2 channel op amp in a 14-pin DIP package with a non-standard pinout as compared to conventional dual op amps. The BrownDog 180801 adapter replaces an RC4739 op amp using one dual channel op amp in the SOIC-8 package. Available with a selection of pre-mounted dual channel op amps.
-
VSSOP/MSOP-8 to 8-pin DIP Adapter – 030502A
Select optionsThe BrownDog 030502A adapter converts any surface mount component in the MSOP-8, VSSOP-8, SOT23-8, or Micro8 package (with 0.65mm pin pitch) to an 8-pin DIP footprint. This adapter has direct pin-to-pin correspondence and can be installed into standard 8-pin DIP sockets, solderless breadboards, or anywhere an 8-pin DIP component can be installed.
-
SC70-8 to 8-pin DIP Adapter – 030502B

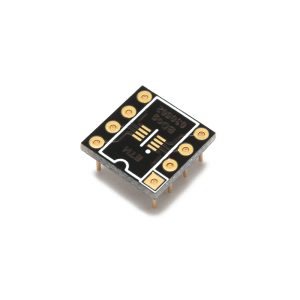

Select optionsConvert surface mount SC70-8 components to the 8-pin DIP footprint with the BrownDog 030502B adapter. This adapter features direct pin-to-pin correspondence and can be installed into standard 8-pin DIP sockets, solderless breadboards, or anywhere with a land pattern for an 8-pin DIP component.
-
SOT-23 to 6-pin DIP Adapter – 041103A

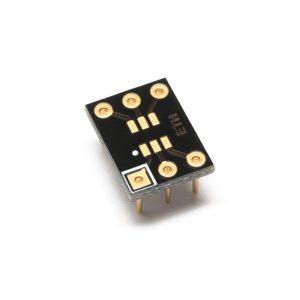

Select optionsThe BrownDog 041103A adapter converts surface mount components in the SOT-23 package with 6, 5, or 3 pins to a 6-pin DIP footprint. This adapter features direct pin-to-pin correspondence and can be used with solderless breadboards, sockets, or 6-pin DIP through-hole land patterns.
-
SC70 to 6-pin DIP Adapter – 041103B

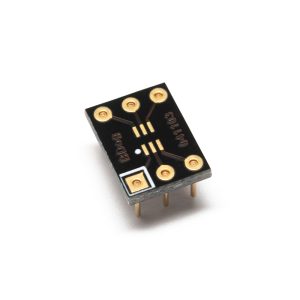

Select optionsConvert surface mount SC70 components to the 6-pin DIP footprint with the BrownDog 041103B adapter. This adapter features pin-to-pin correspondence and can be installed into solderless breadboards, sockets, and anywhere a 6-pin DIP component can be installed.
-
SOIC-14 to 14-pin DIP Adapter – 050101
Select optionsUse the BrownDog 050101 adapter to convert an SOIC-14 surface mount component to a 14-pin DIP footprint. This adapter features direct pin-to-pin correspondence and is easily installed into a 14-pin DIP socket, solderless breadboard, or any PCB with a 14-pin DIP land pattern. Available with an optional OPA4134 or OPA1644 quad channel op amp installed.
-
SOIC-16 to 16-pin DIP Adapter – 170702
Add to cartConvert a narrow or wide SOIC-16 surface mount component to a 16-pin DIP footprint with the BrownDog 170702 adapter. Can be used with solderless breadboards, 16-pin DIP sockets or printed circuit boards with a 16-pin DIP land pattern.
-
SOIC-20 to 20-pin DIP Adapter – 131101
Add to cartConvert surface mount SOIC-20 components to the 20-pin DIP footprint with the BrownDog 131101 adapter. This adapter features direct pin-to-pin correspondence and can be used in solderless breadboards, 20-pin DIP sockets, and 20-pin land patterns on printed circuit boards.
