SIP Adapters

SIP adapters for replacement of single-inline pin (SIP) electronic components.

Showing all 5 results

  • BrownDog 060301 8-pin DIP or SOIC to single-inline pin adapter

    8-pin SOIC/DIP to SIL Adapter – 060301

    Select options $3.99$16.00

    Replace an 8-pin SIL (single inline) component with an equivalent 8-pin DIP or SOIC part using the BrownDog 060301 adapter. This adapter features direct pin-to-pin correspondence and can accommodate both DIP8 and SOIC-8 components. Available with an 8-pin DIP socket or a selection of audio op amps installed.

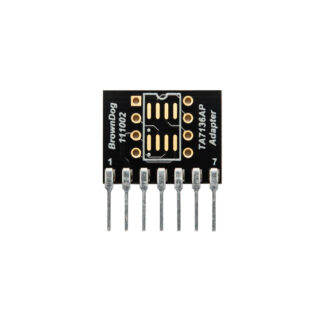

  • BrownDog 111002 TA7136 upgrade adapter

    TA7136 Upgrade Adapter – 111002

    Select options $4.99$20.00

    The TA7136 op amp is a single channel op amp in a 7-pin SIL (single inline) package. The BrownDog 111002 adapter allows for the replacement of TA7136 op amps with modern single-channel op amps in either the SOIC-8 SMD package, or the 8-pin DIP package. Available with an 8-pin DIP socket or with a selection of single-channel audio op amps installed.

  • BrownDog 140901 HA1457 upgrade adapter

    HA1457 Upgrade Adapter – 140901

    Select options $4.99$20.00

    The HA1457 op amp is a single-channel op amp in an 8-pin SIL (single inline) package that was produced by Hitachi for use in hi-fi audio. The BrownDog 140901 adapter replaces HA1457 (and HA12017) op amps with modern single-channel op amps in either the SOIC-8 or DIP8 package. Available with an 8-pin DIP socket or an OPA604 single-channel audio op amp installed.

  • BrownDog 040701 single-to-dual op amp adapter

    SIL Single-to-dual Op-Amp Adapter – 040701

    Add to cart $3.99

    The BrownDog 040701 adapter maps the pins from two single-channel op amps in the SOIC-8 SMD package to the pinout of a dual-channel SIL (single inline) op amp with 8 pins in a single row. Both op amps (U1 and U2) mount to the front surface.

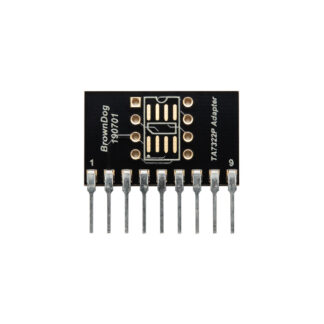

  • BrownDog 190701 TA7322 upgrade adapter

    TA7322 Upgrade Adapter – 190701

    Select options $4.99$20.00

    The TA7322 op amp is a single channel op amp in a 9-pin SIL (single inline) package that was produced by Toshiba for audio applications. The BrownDog 190701 adapter replaces TA7322 op amps with modern single-channel op amps in either the SOIC-8 or 8-pin DIP package. Available with an 8-pin DIP socket or with a selection of single-channel audio op amps installed.
