TO-99 to 8-pin DIP Adapter – 020601B

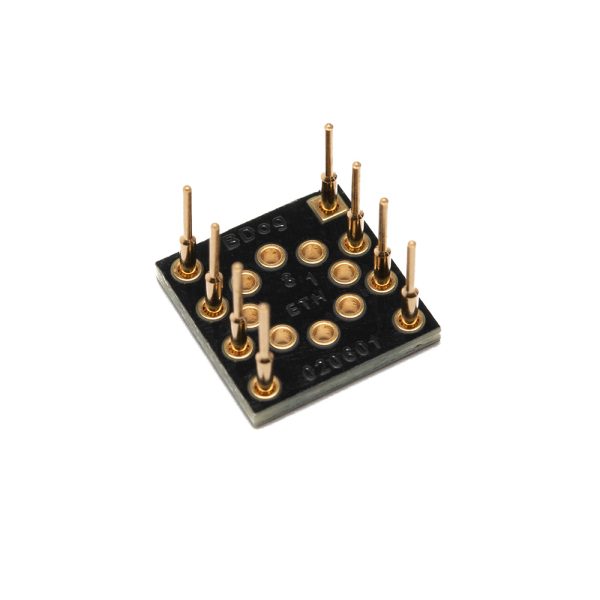

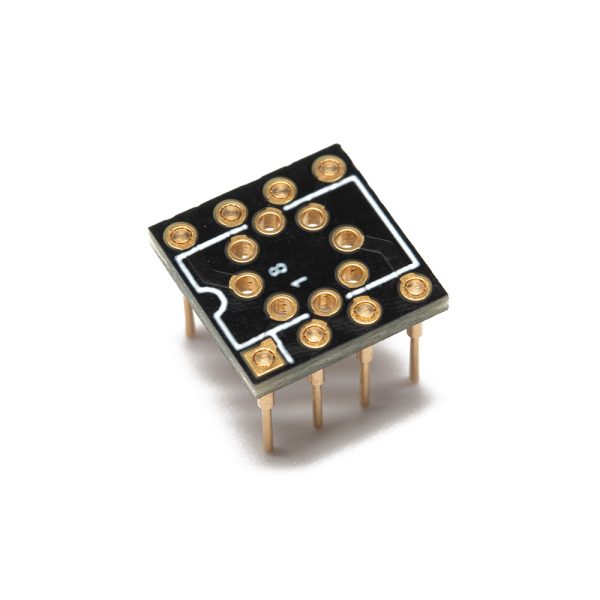

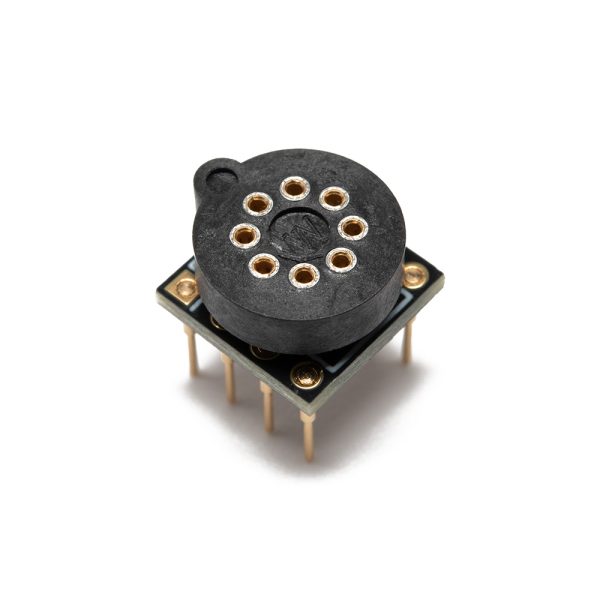

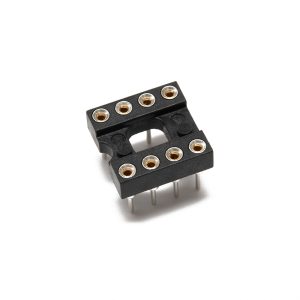

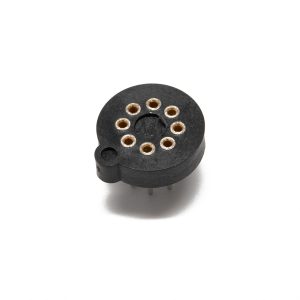

The BrownDog 020601B adapter converts a TO-99 “metal can” component to an 8-pin DIP footprint. Featuring direct pin-to-pin correspondence, this adapter can be installed into 8-pin DIP sockets, solderless breadboards, or standard 8-pin DIP land patterns on printed circuit boards. Available with an optional TO-99 socket installed.
$3.00 – $13.00
Specifications:
- Maps each pin from the TO-99 through-holes to the equivalent 8-pin DIP pin.
- Land pattern for TO-99-8 component are 8 evenly spaced through-holes on a 0.2 in. diameter circular pattern.
- Diameter of plated through-holes is 0.035 in.
- Adapter footprint is 8-pin DIP with pins on a 0.1 in. pitch in rows spaced 0.3 in.
- Board dimensions: 400 mil by 400 mil
- Contact pin diameter: 0.018 in.
- Tg 130, FR-4 laminate
- ENIG surface finish
- RoHS compliant
- Low loss traces: 30 mil minimum trace width
- Made in USA of domestic and foreign components.
- Download schematic.
| Weight | 0.02 oz |
|---|---|
| Dimensions | 0.4 × 0.4 × 0.3 in |
| Base Part Number | 020601B |
| Input Device | TO-99-8 |
| Adapter Footprint | DIP-8 |
