Dual-to-Quad Op Amp Adapter – BrownDog 070401

$4.00$54.00

Features

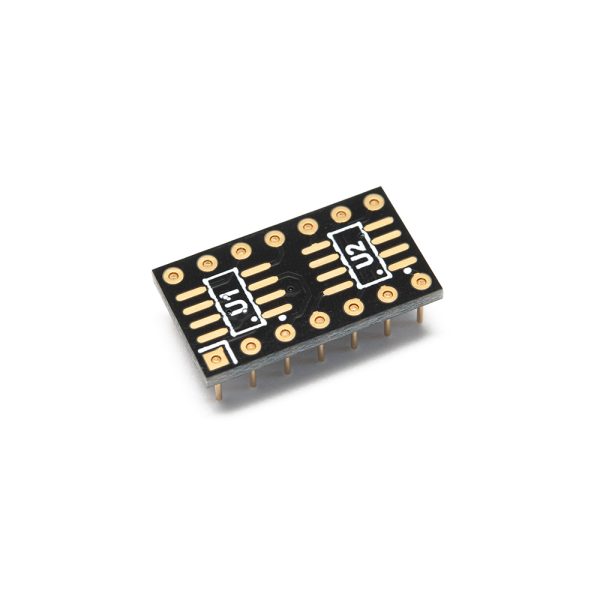

  • Integrates two dual channel SO8 op amps into a standard quad pinout in a 14 pin DIP footprint
  • 0.700 in. X 0.400 in. X 0.048 in. board dimensions
  • 0.193 in. total height (including contact pins)
  • DIP pins on 0.100 in. (2.54mm) pitch by 0.300 in. row spacing
  • Surface-mount pads on 0.050 in. (1.27mm) pitch
  • Hot-air solder levelled (HASL) surface finish
  • Available either with or without pins installed

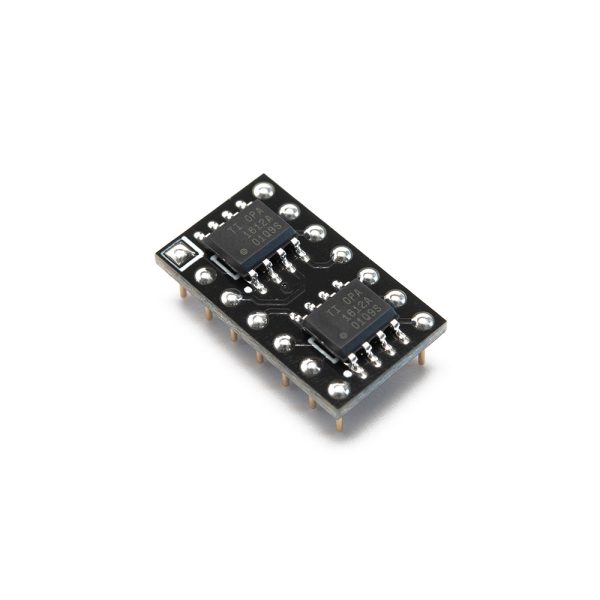

  • Available with optional audio op amps installed
Clear

The BrownDog™ 070401 is a dual to quad op amp adapter that integrates two dual channel SO8 op amps into a standard quad pinout in a 14 pin DIP footprint. The 070401 adapter provides additional options when upgrading or replacing quad op amps by allowing dual op amps as viable alternatives. When paired with the 070401 adapter, any conventional quad channel op amp in a 14 pin DIP package can be replaced with two dual channel SO8-package op amps. Each op amp is seated within the DIP contact pins, giving it a compact form factor that will fit into any location that holds a 14 pin DIP IC.

The 070401 is made with contemporary PCB design techniques, software, and manufacturing. With this adapter, any dual SO8 op amp mounted to the 070401 will perform within its manufacturer-specified ranges. We provide you the option of buying the 070401 adapter either with or without pins installed, or with your choice of optional audio op amps installed. If you need a different op amp mounted to this adapter, contact us for a quote. We can source manufacturer-authorized components for your requirements, or install your customer-supplied parts to this adapter.

0/5 (0 Reviews)
Weight 0.001 oz
Dimensions 0.7 × 0.4 × 0.3 in
Part Number

070401
