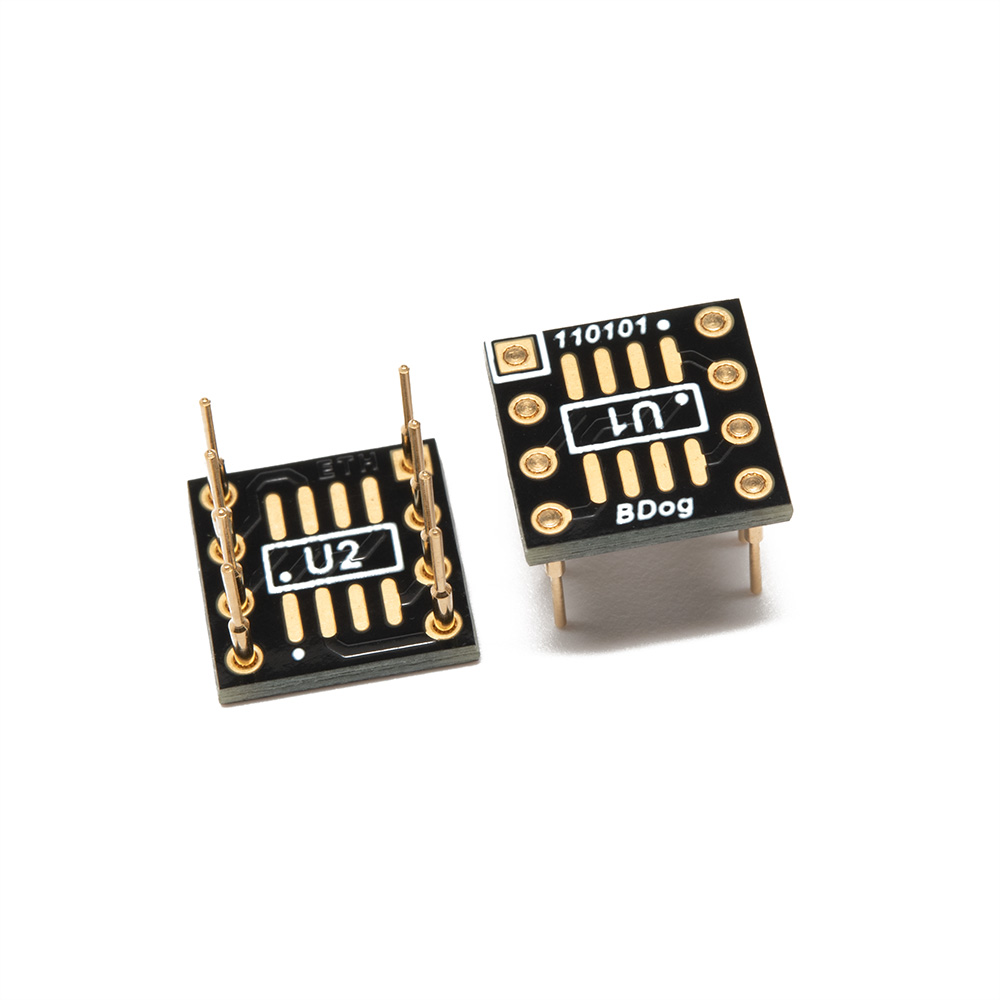

BrownDog BUF634 upgrade adapter showing top and bottom sides

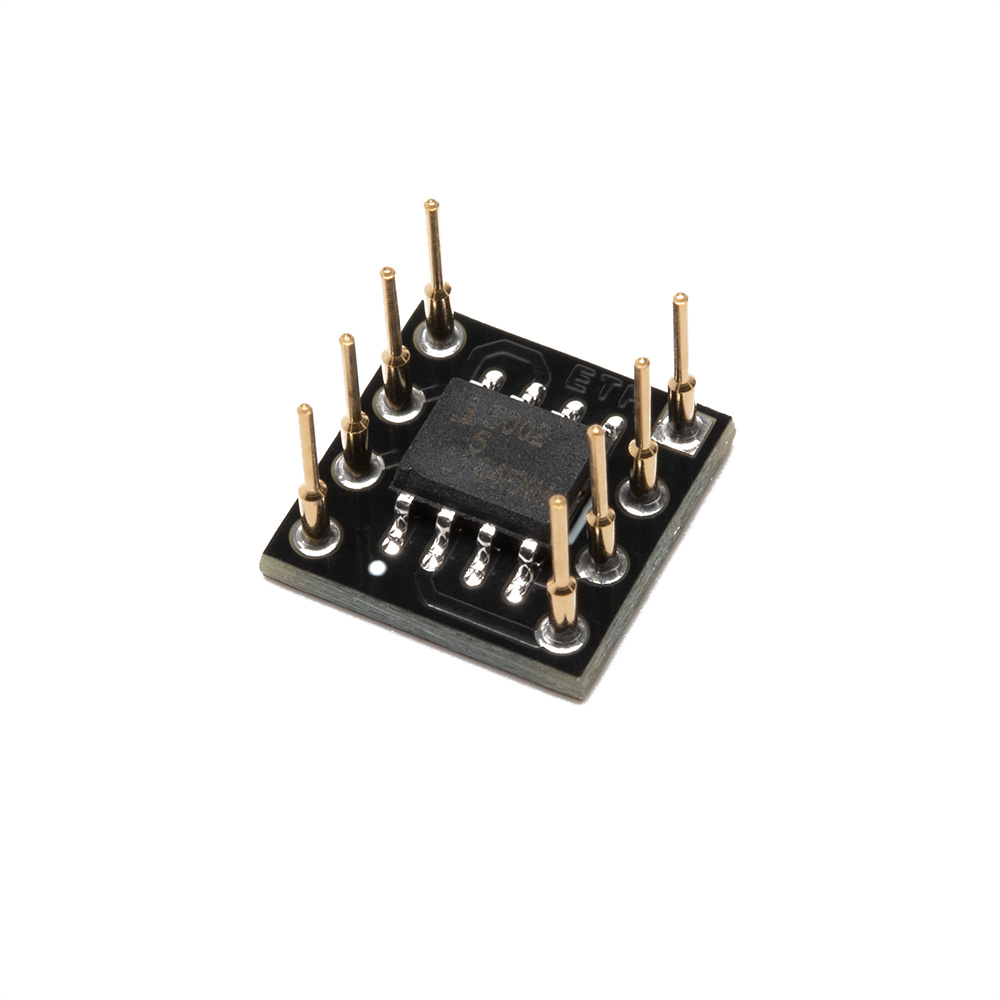

Bottom side of the BrownDog BUF634 upgrade adapter with HA-5002 installed

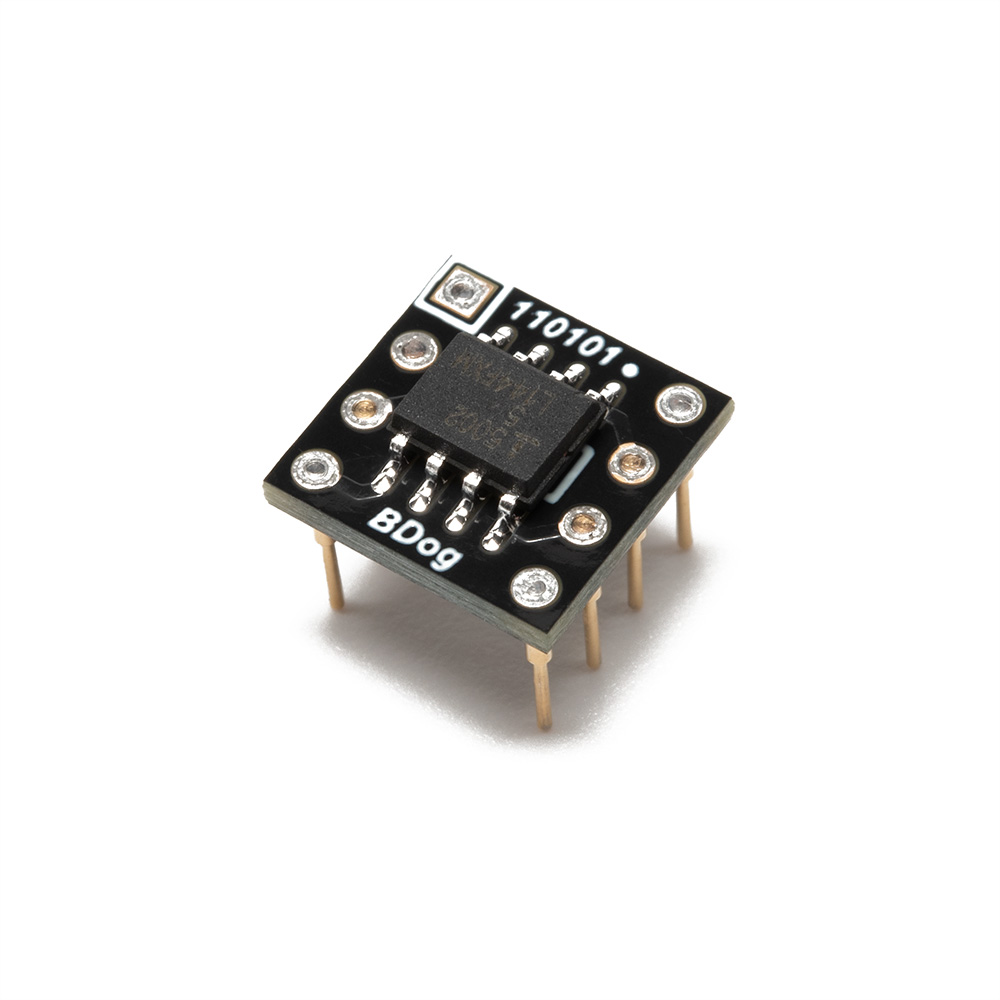

Top side of the BrownDog BUF634 upgrade adapter with HA-5002 installed

BUF634 Upgrade Adapter

$3.20 – $24.00

Adapts one (or two in parallel) HA-5002 buffer amplifier to the BUF634 DIP-8 footprint. Available with optional HA-5002 buffer amplifiers installed!

SKU: 110101 Category:

Description

Model BrownDog 110101
Description HA-5002 (one, or two in parallel) to BUF634 adapter
Input device SOIC-8 HA-5002 buffer amplifier
Adapter footprint DIP-8
Board dimensions 0.4 in. by 0.4 in.
PCB thickness 0.047 in.
Pin grid pattern 0.1 in. pitch, 0.3 in. row spacing
PCB material FR-4
Copper surface finish ENIG

Additional information

Model

110101
Country of origin

USA
