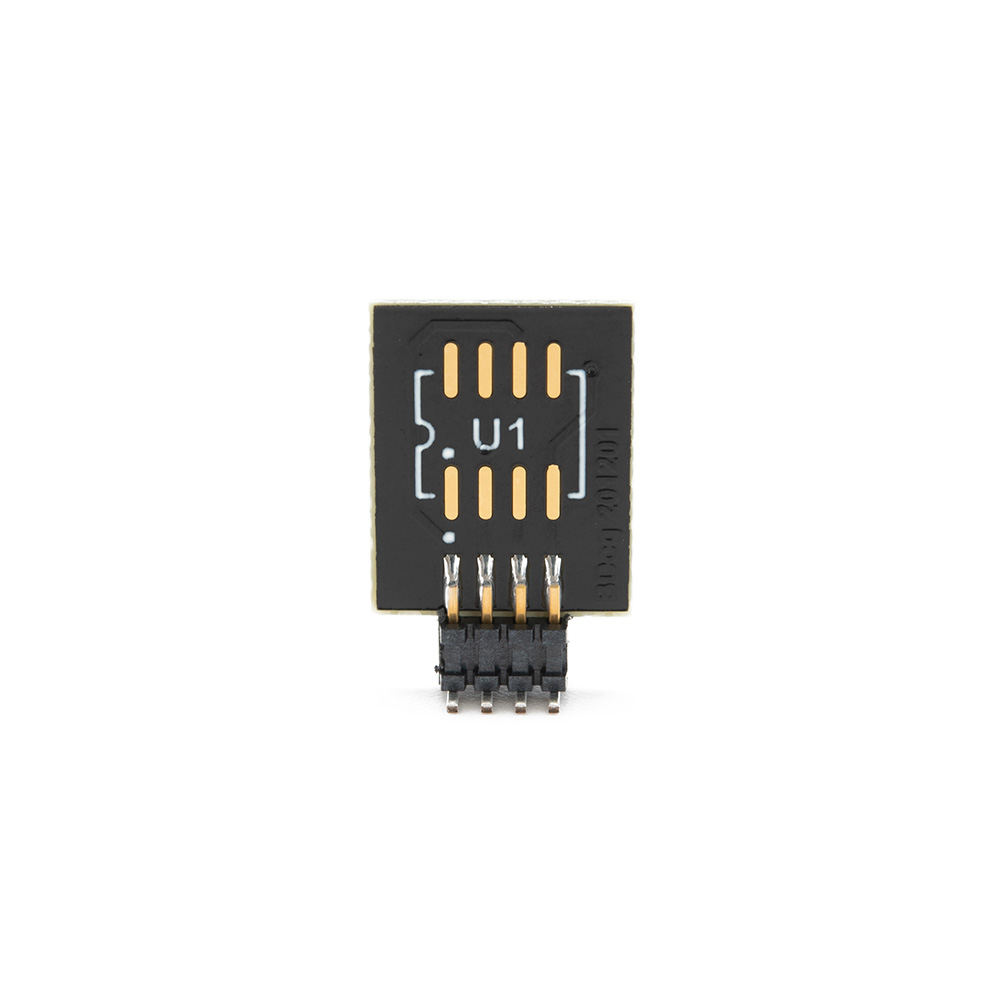

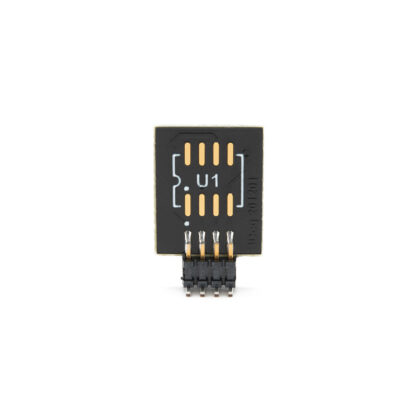

Front side of the BrownDog dual op amp adapter (SOIC version)

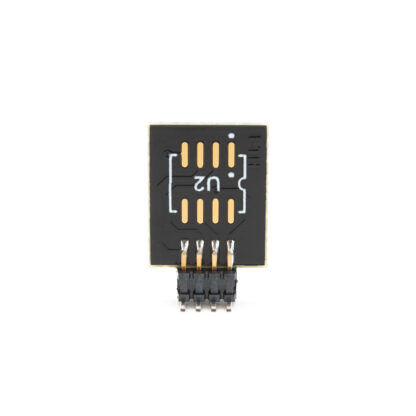

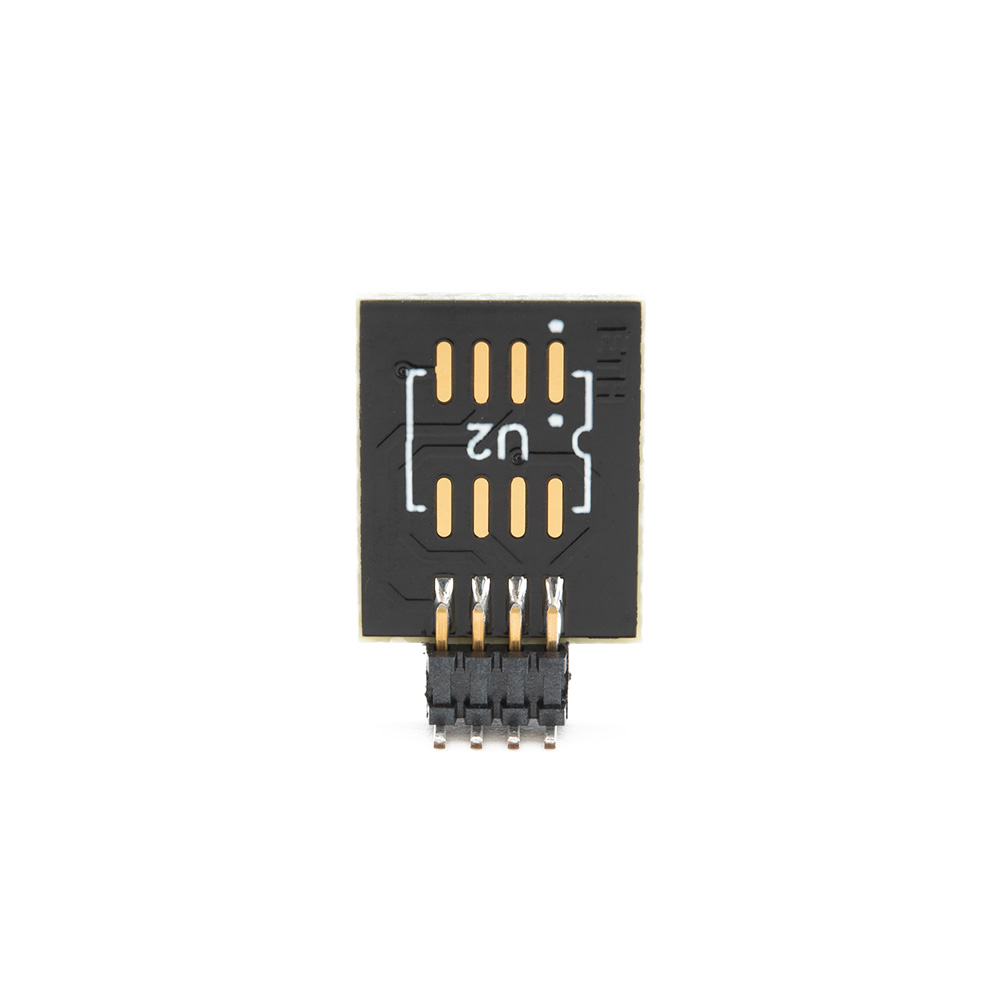

Back side of the BrownDog dual op amp adapter (SOIC version)

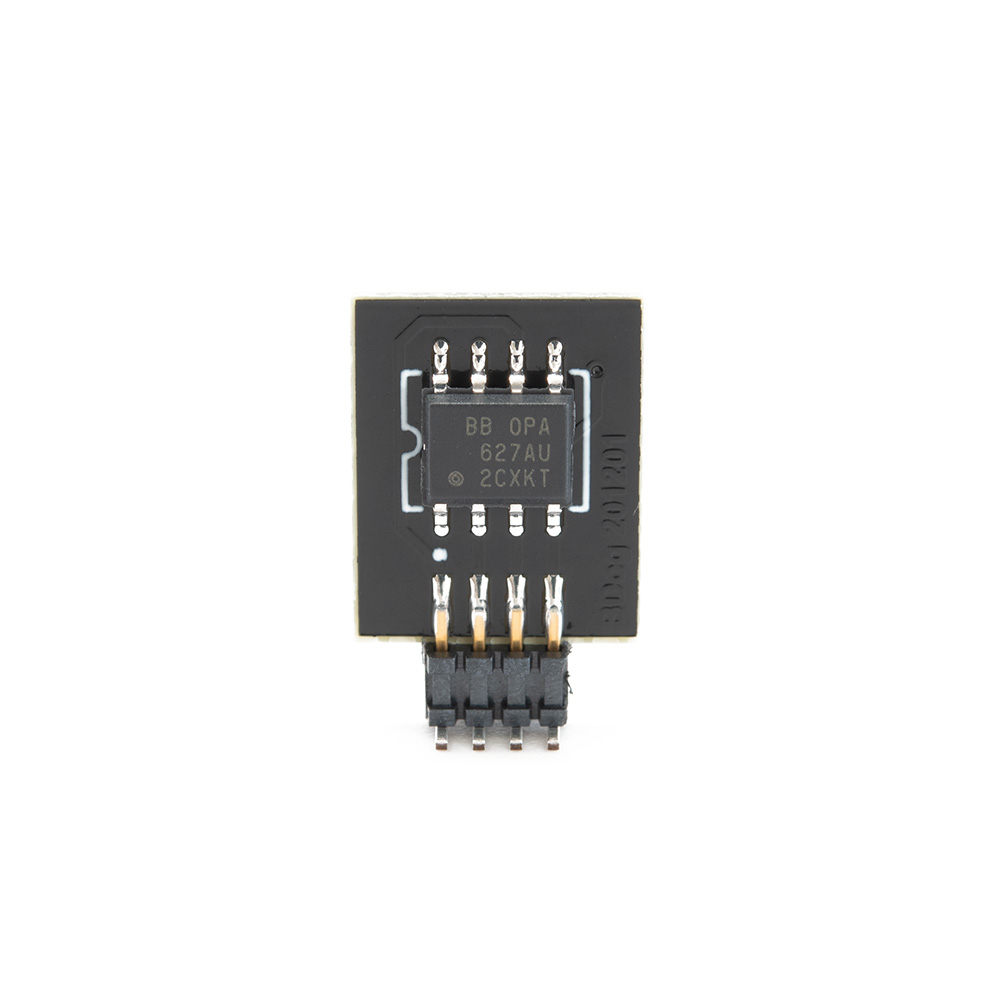

Front side of the BrownDog dual op amp adapter (SOIC version) with two OPA627 op amps installed

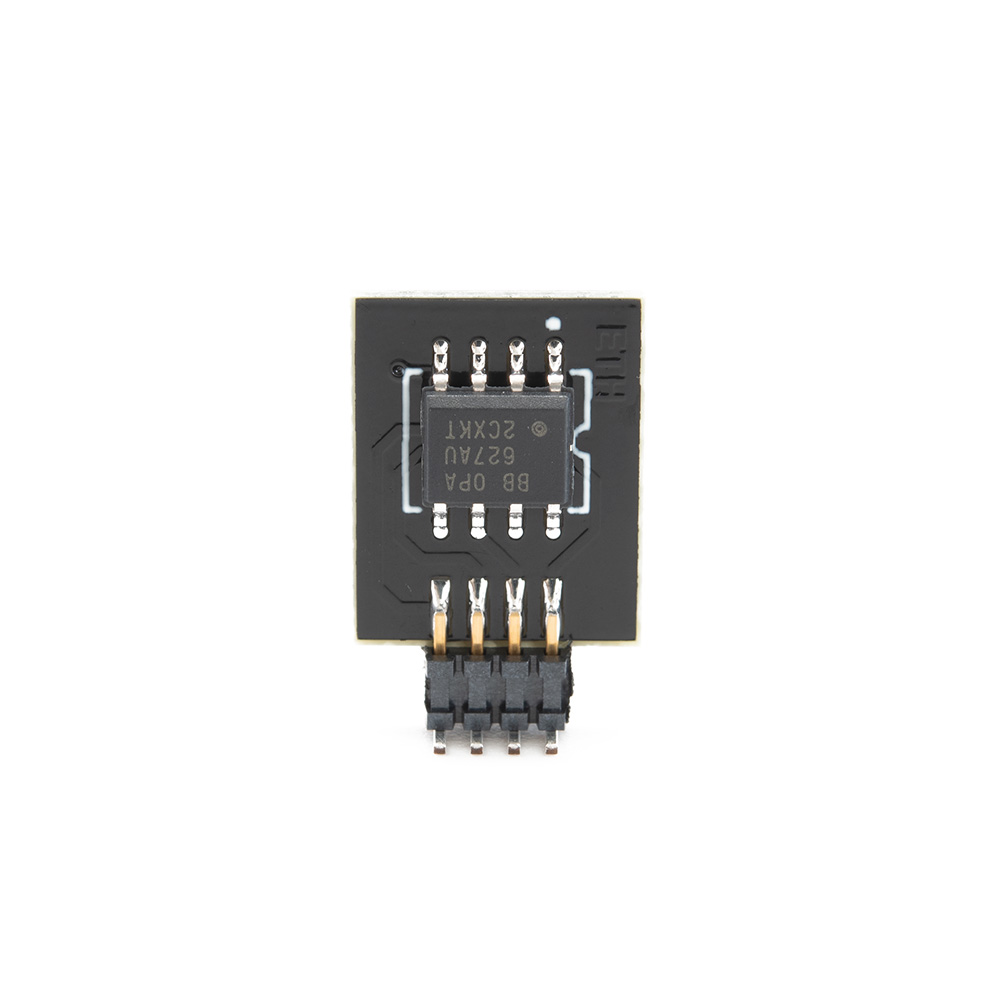

Back side of the BrownDog dual op amp adapter (SOIC version) with two OPA627 op amps installed

Single-to-dual Op Amp Adapter – SOIC-8 to SOIC-8 Version

$6.99 – $60.00

Adapts two single-channel SOIC-8 op amps to a dual-channel SOIC-8 footprint. Available with a selection of optional op amps installed!

SKU: 201201 Category:

Description

Model BrownDog 201201
Description Single-channel SOIC-8 op amp to dual-channel SOIC-8 op amp adapter
Input device SOIC-8 single-channel op amp
Adapter footprint SOIC-8
Board dimensions 0.4 in. by 0.5 in.
PCB thickness 0.031 in.
Vertical height above target board 0.61 in.
Header pin pitch 0.050 in./1.27mm
PCB material FR-4
Copper surface finish ENIG

Additional information

Model

201201
Country of origin

USA
