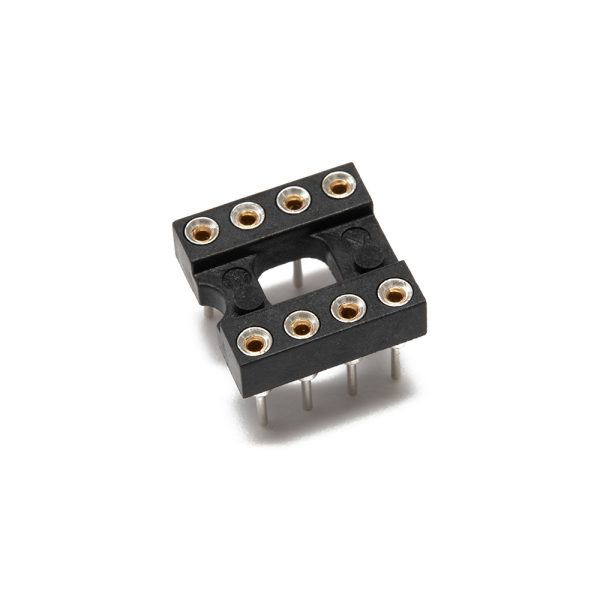

This is an 8 pin DIP socket made by Mill-Max Mfg. Corp. This socket is available individually or installed as an option into any of our components that are designed to accept 8 pin DIP devices. Any of our adapters with 8 pin DIP footprints (e.g. 970601, 020302, etc.) are compatible with and held securely by this socket. With 30 micron gold plating, corrosion and resistive losses are minimized.
Mill-Max 8-pin DIP Socket
$1.00
Features
- Accepts a standard 8 pin DIP integrated circuit with pins on 0.100 in. pitch and 0.300 in. row spacing
- Accepts 0.015 in. – 0.025 in. diameter round and standard IC leads
- Rated at 3 amps
- Gold-plated inner contacts
- Insulators are high temperature thermoplastic, suitable for all soldering operations
| Weight | 0.001 oz |
|---|---|
| Dimensions | 0.4 × 0.4 × 0.3 in |
| Part Number | 110-43-308-41-001000 |
| Datasheet | 110-43-308-41-001000 Datasheet |
