Mill-Max 8-pin TO-5 Socket

$2.00

Features

  • Accepts a standard 8 pin TO-5 (TO-99) integrated circuit with pins on a 0.200 in. diameter circular pattern
  • Accepts 0.018 in. – 0.025 in. diameter round and standard IC leads
  • Rated at 3 amps
  • Gold-plated inner contacts
  • Insulators are high temperature thermoplastic, suitable for all soldering operations
Quantity Price
1 - 4 $2.00
5+ $1.80
SKU: 6001 Category:

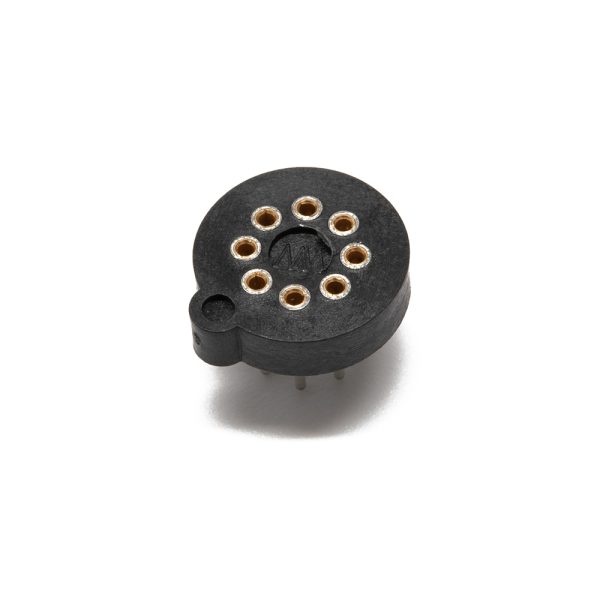

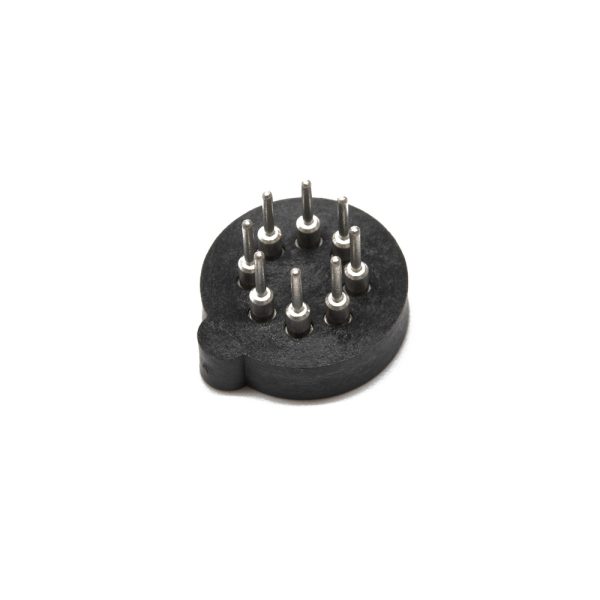

This is an 8 pin TO-5 socket made by Mill-Max Mfg. Corp. This socket is available individually or installed as an option into any of our components that are designed to accept TO-99 devices. Any of our adapters with 8 pin DIP footprints (e.g. 020601A) are compatible with and held securely by this socket. With 30 micron gold plating, corrosion and resistive losses are minimized.

0/5 (0 Reviews)
Weight0.001 oz
Dimensions0.4 × 0.4 × 0.3 in
Part Number

917-43-108-41-005000

Datasheet

917-43-108-41-005000 Datasheet
