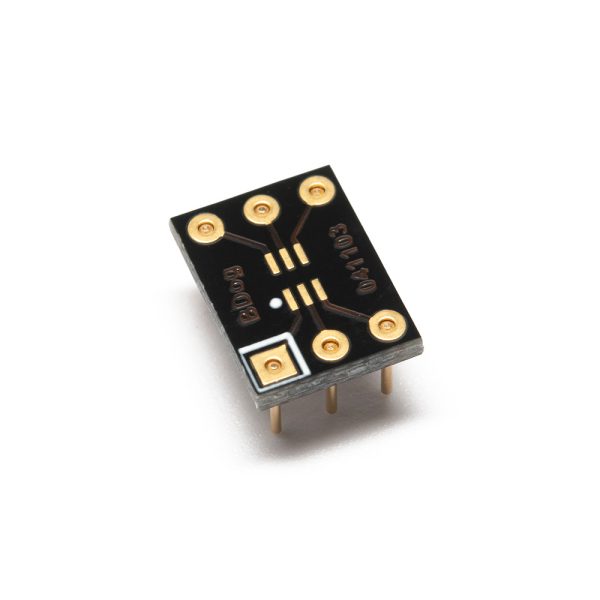

The BrownDog™ 041103B is an SC70-6 to 6 pin DIP adapter. With the electronics industry’s move to surface-mount technology, many integrated circuits are now only available in SMT packages. While SMT is preferable for high-volume, automated manufacturing, prototyping and evaluation with this type of IC is difficult without a way to easily connect test probes to their contact pins. And compared to its through-hole siblings, it is difficult to remove an SMD from its circuit board without expensive hot-air rework equipment, and without damaging the component itself or the PCB. The 041103B adapter provides a convenient solution when working with SC70-package devices in these situations. As a pin-to-pin adapter, an SC70-6 component installed on the 041103B will be functionally equivalent to a 6 pin DIP device. Whether you’re replacing an existing DIP device, designing for interchangeability, or in prototyping and evaluation, the 041103B is the perfect answer.
The 041103B is made with contemporary PCB design techniques, software, and manufacturing. With electroless nickel immersion gold (ENIG) surface finish for conductivity and flat surface planarity, and 0.012 in. minimum trace widths, there will be no detectable difference between an SC70 device (0.65mm pitch) mounted to the 041103B and an equivalent DIP device. We provide you the option of buying the 041103B adapter either with or without pins installed. We can also partially populate the through-holes with fewer than six contact pins. If you need an IC mounted to this adapter, contact us for a quote. We can source manufacturer-authorized components for your requirements, or install your customer-supplied parts to this adapter.
