RC4739 Upgrade Adapter – 180801

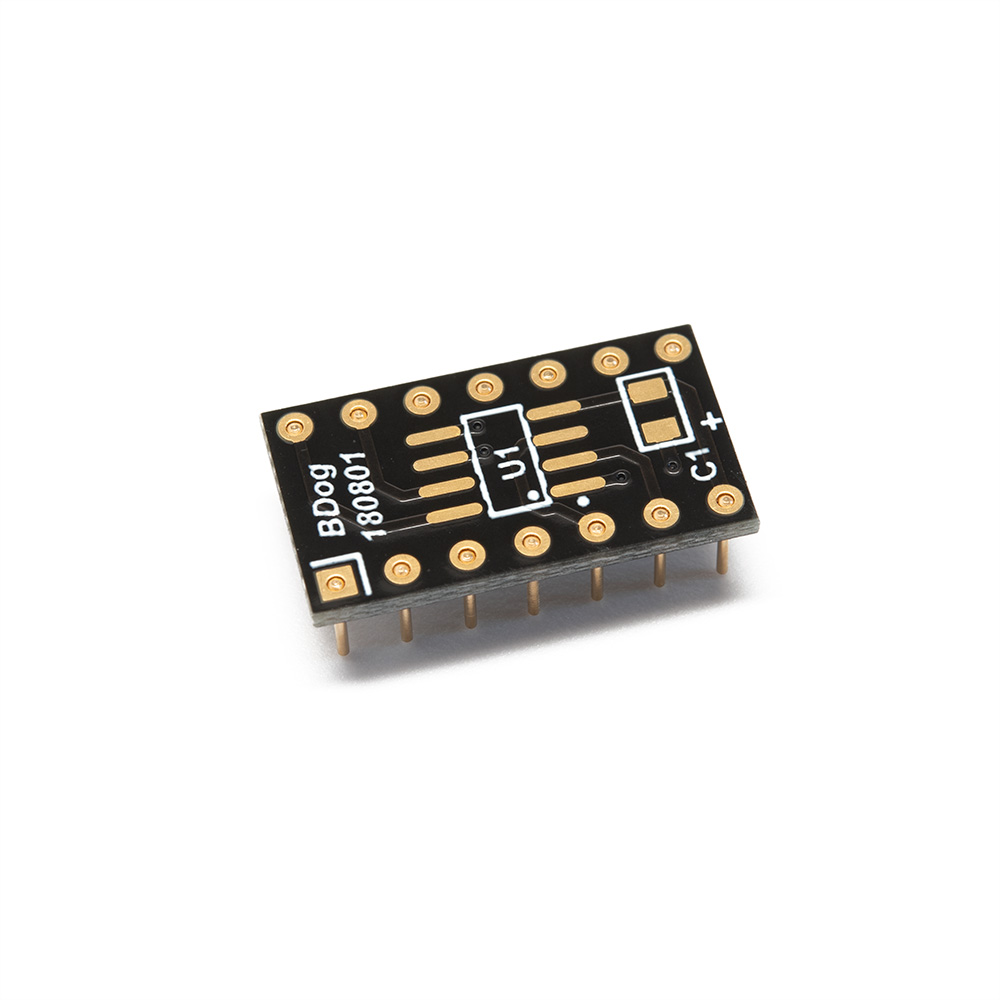

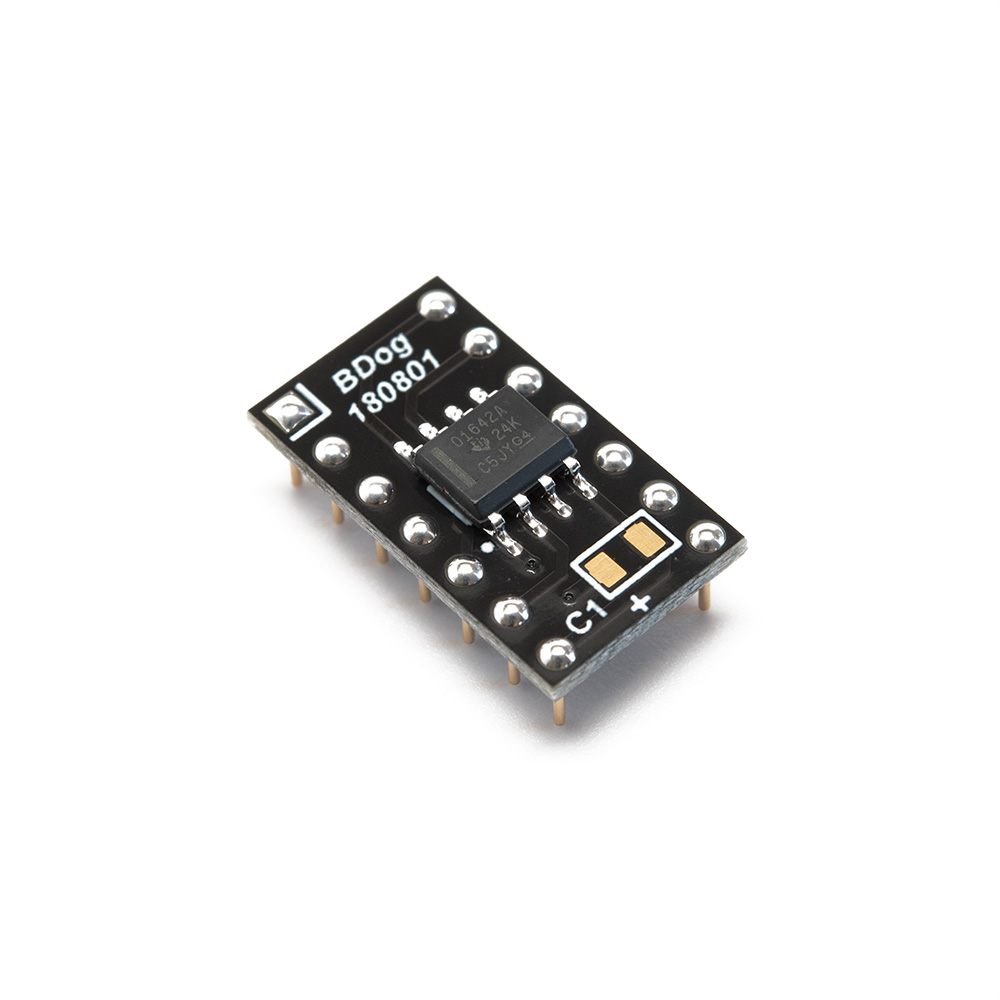

The ‘4739 op amp is a 2 channel op amp in a 14-pin DIP package with a non-standard pinout as compared to conventional dual op amps. The BrownDog 180801 adapter replaces an RC4739 op amp using one dual channel op amp in the SOIC-8 package. Available with a selection of pre-mounted dual channel op amps.
$4.99 – $31.00
Specifications:
- Maps the pins from one dual channel op amp to the pinout for a ‘4739 op amp.
- Land pattern for SOIC-8 (0.050 in. = 1.27mm pin pitch) dual channel op amp on the top surface.
- Pad for optional 0805 bypass capacitor between power voltage rails.
- Adapter footprint is 14-pin DIP with pins on a 0.1 in. pitch in rows spaced at 0.3 in.
- Board dimensions: 700 mil length, by 400 mil width
- Contact pin diameter: 0.018 in.
- Tg 130, FR-4 laminate
- ENIG surface finish
- Low loss traces: 20 mil minimum trace width
- Made in USA of domestic and foreign components.
- Download schematic.
| Weight | 0.02 oz |
|---|---|
| Dimensions | 0.7 × 0.4 × 0.3 in |
| Base Part Number | 180801 |
| Input Device | SOIC-8 |
| Adapter Footprint | DIP-14 |
