Description

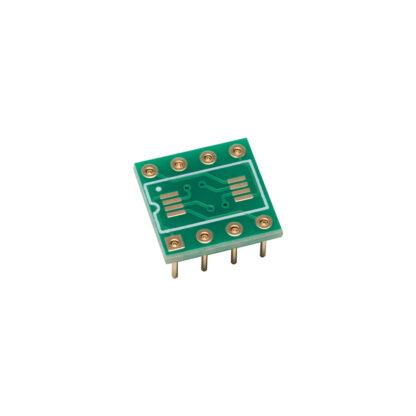

The BrownDog 250601 TSSOP-8 to DIP-8 Adapter converts surface mount 8-pin TSSOP package components to the 8-pin DIP footprint.
Features
- Allows for installation of TSSOP-8 surface mount devices into 0.100 in. [2.54mm] pitch DIP sockets, breadboards, protoboards and PCBs
- SMT footprint on top surface for one TSSOP-8 component with a 0.65mm pin pitch
- Press-fit pins create a low profile, compact design and eliminate the need to solder separate header pins to the board.
- Low loss 12 mil minimum trace width
- Available with or without pins installed
- Also available in 100-up (10 by 10) array panels for automated assembly. We can install your choice of TSSOP-8 electronic component to the adapters as a turnkey solution. Contact us for a quotation.
Specifications
- Board dimensions: 0.400 in. [10.2mm] by 0.400 in. [10.2mm] by 0.047 in. [1.2mm]
- SMT pitch: 0.65mm
- Pin diameter: 0.018 in. [0.46mm]
- Pin pitch: 0.100 in. [2.54mm]
- Pin row spacing: 0.300 in. [7.62mm]
- PCB manufactured to IPC-6012 Class II standards
- Board material: FR-4 (UL94V-0), Tg 130°C minimum, 1 oz. copper
- Copper surface finish: ENIG
- Green solder mask on both sides of PCB
