$7.99 – $14.00

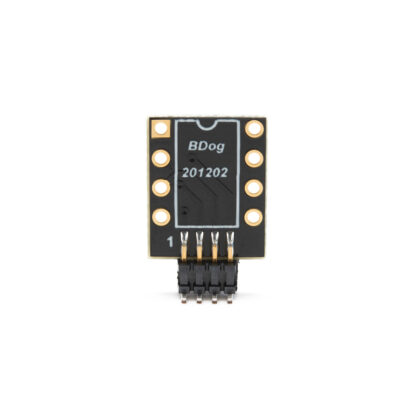

The BrownDog 8-pin DIP to SOIC adapter is a small PCB that replaces an SOIC-8 surface mount component with an 8-pin DIP through-hole component. This adapter has an SOIC-8 header that mounts to an SOIC-8 footprint and has an 8-pin DIP through-hole pattern that stands 90 degrees to the target PCB. Click the button below to download the datasheet for this adapter.

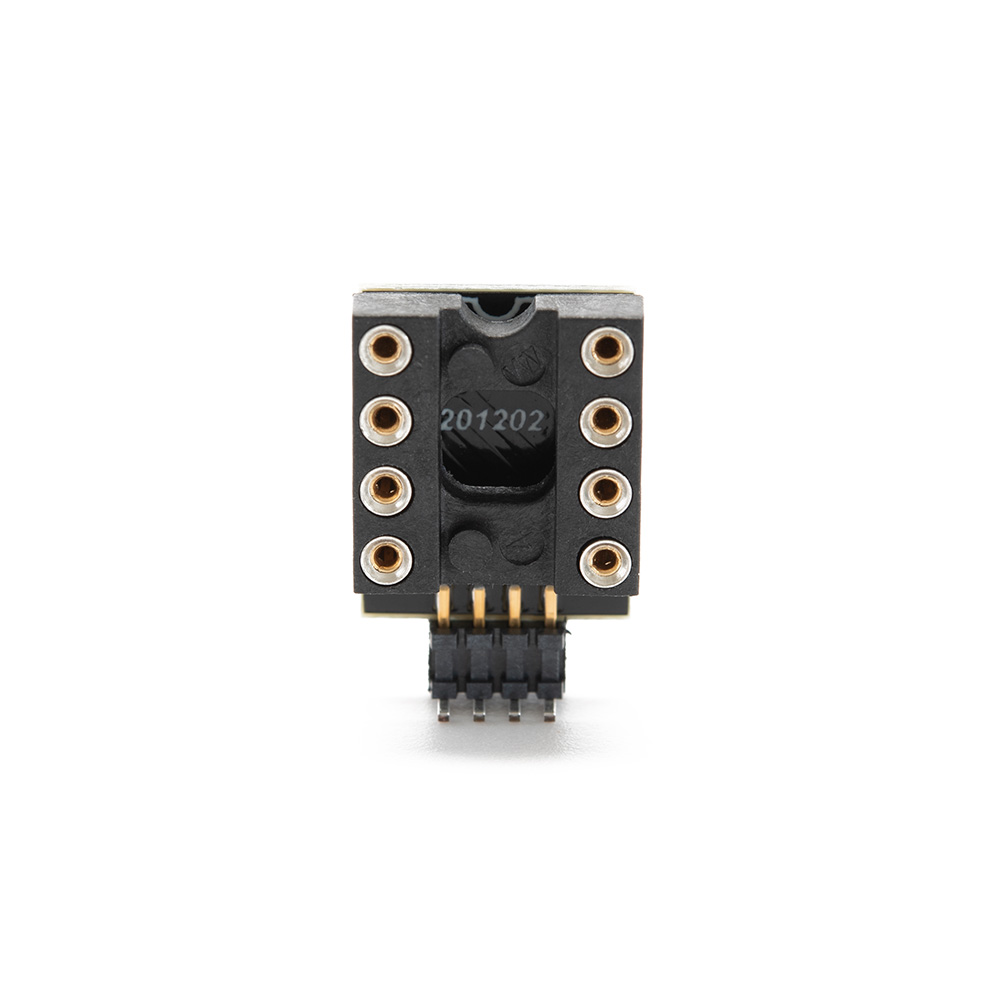

The BrownDog 8-pin DIP to SOIC adapter replaces an SOIC-8 surface mount component with an 8-pin DIP component with direct pin to pin correspondence. You can order this adapter either unpopulated, or with an 8-pin DIP socket installed.
This adapter features ENIG plating on the exposed copper, and low loss traces at 20 mil minimum width. Compatible 8-pin DIP sockets are also available for sale on this website.
| Weight | 0.02 oz |
|---|---|
| Dimensions | 0.6 × 0.4 × 0.3 in |
| Model | 201202 |
