Single-to-dual Op-Amp Adapter – SOIC-8 version – 201201

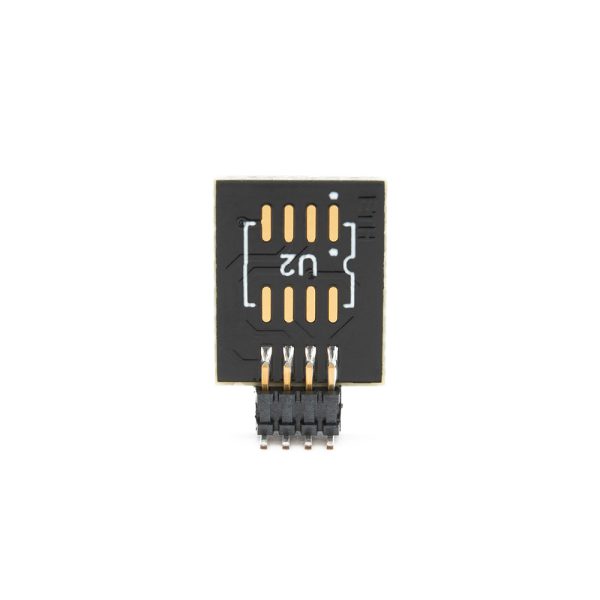

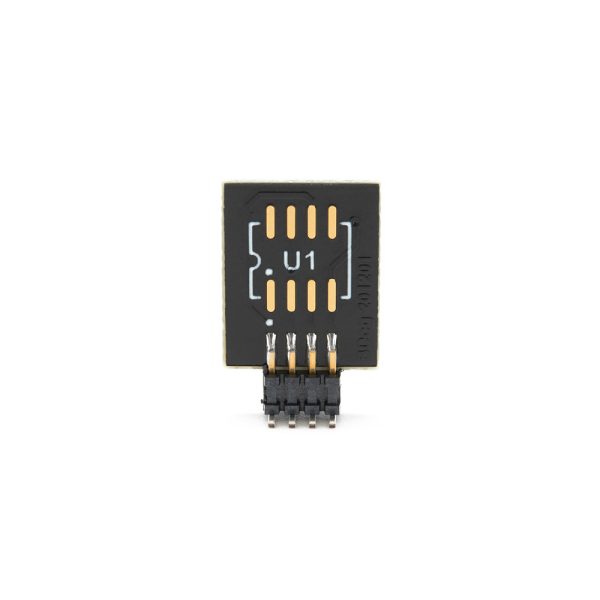

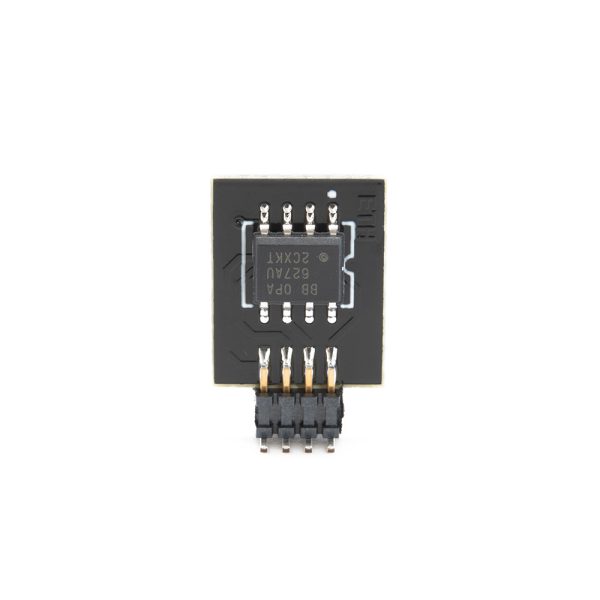

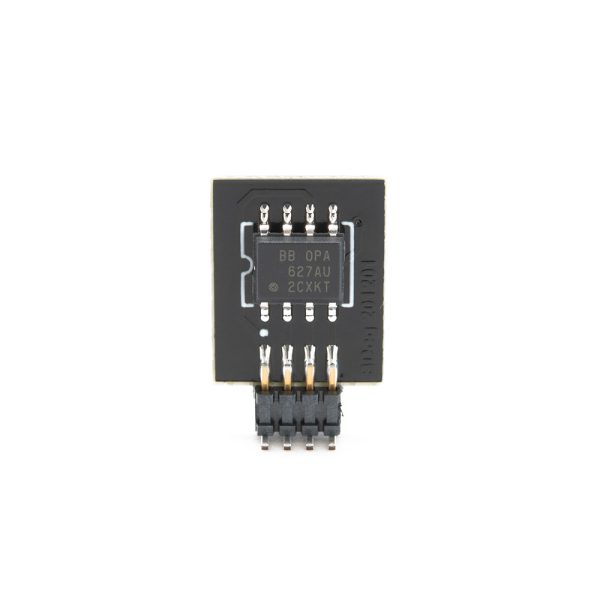

With the BrownDog 201201 adapter, you can use two single channel op amps to replace a dual channel op amp. This adapter works with single channel op amps in the SOIC-8 package, with one mounted on the front and one on the back. The header on the bottom edge mounts to an SOIC-8 land pattern for a dual channel op amp. Available with optional audio op-amps installed!
$7.49 – $59.00
Specifications:
- Maps the pins from 2 single channel op amps to the pinout for a dual channel op amp at the header.
- Two land patterns for SOIC-8 (0.050 in. = 1.27mm pin pitch) single channel op amps, one on the front, and one on the back.
- Header footprint is SOIC-8 (0.050 in. = 1.27mm pin pitch).
- Board dimensions: 400 mil width, by 500 mil height
- Overall height (from flange of header to top of board): 0.61 in.
- Tg 130, FR-4 laminate
- ENIG surface finish
- Low loss traces: 15 mil minimum trace width
- Made in USA of domestic and foreign components.
- Supersedes part number 031101A.
- Download schematic.
| Weight | 0.02 oz |
|---|---|
| Dimensions | 0.6 × 0.4 × 0.3 in |
| Base Part Number | 201201 |
| Input Device | SOIC-8 |
| Adapter Footprint | SOIC-8 |
