Audio Upgrade Adapters
Showing 1–12 of 16 results
-

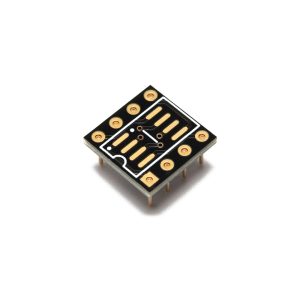

SOIC-8 to 8-pin DIP Adapter – 970601
Select optionsConvert any surface mount component in the SOIC-8 package to an 8-pin DIP footprint with the BrownDog 970601 adapter. This adapter features direct pin-to-pin correspondence and a low profile, compact form factor. Available with a selection of optional audio op amps installed.
-
Single-to-dual Op-Amp Adapter – 020302
Select optionsThe BrownDog 020302 adapter integrates two single channel SOIC-8 op amps into a standard dual channel pinout in the 8-pin DIP footprint. One op amp mounts to the top surface (U1), and the other mounts to the bottom surface (U2). Available with optional audio op amps installed!
-

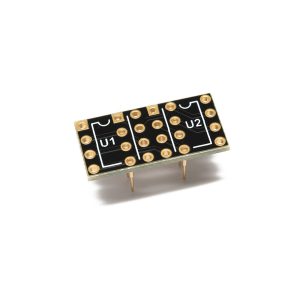

Single-to-dual Op-Amp Adapter – DIP version – 021001
Select optionsThe BrownDog 021001 adapter integrates two single channel 8-pin DIP op amps into a standard dual channel pinout in the 8-pin DIP footprint. Two single channel op amps mount side by side on the top surface. Available with optional DIP sockets installed!
-

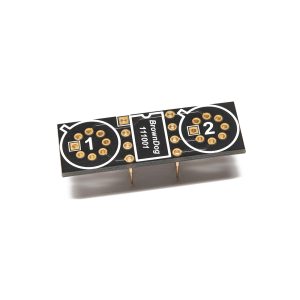

Single-to-dual Op-Amp Adapter – TO-99 version – 111001
Select optionsThe BrownDog 111001 adapter integrates two single channel TO-99-8 op amps into a standard dual channel pinout in the 8-pin DIP footprint. Two single channel TO-99 “metal can” op amps mount side by side on the top surface. Available with optional TO-99 sockets installed!
-

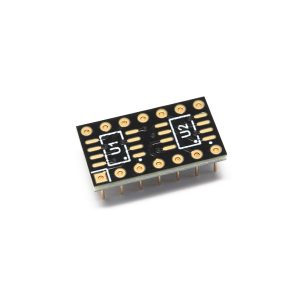

RC4136 Upgrade Adapter – 060601
Select optionsThe ‘4136 op amp is a 4 channel op amp in a 14-pin DIP package with a non-standard pinout as compared to conventional quad op amps. The BrownDog 060601 adapter replicates an RC4136 op amp using two dual channel op amps in the SOIC-8 package. Available with a selection of pre-mounted dual channel op amps.
-

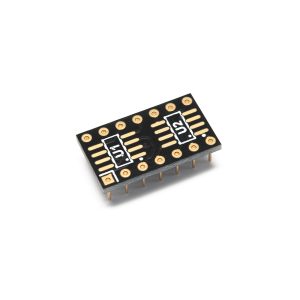

Dual-to-quad Op-Amp Adapter – 070401
Select optionsThe BrownDog 070401 adapter replicates a standard quad (4 channel) op amp in a 14-pin DIP package using two dual channel op amps in the SOIC-8 package. This adapter is available by itself, or with a selection of dual channel op amps pre-mounted to it.
-

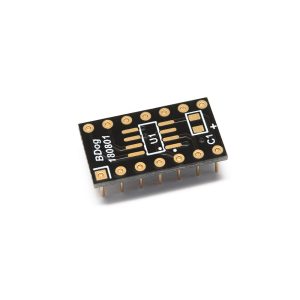

RC4739 Upgrade Adapter – 180801
Select optionsThe ‘4739 op amp is a 2 channel op amp in a 14-pin DIP package with a non-standard pinout as compared to conventional dual op amps. The BrownDog 180801 adapter replaces an RC4739 op amp using one dual channel op amp in the SOIC-8 package. Available with a selection of pre-mounted dual channel op amps.
-
8-pin SOIC/DIP to SIL Adapter – 060301
Select optionsReplace an 8-pin SIL (single inline) component with an equivalent 8-pin DIP or SOIC part using the BrownDog 060301 adapter. This adapter features direct pin-to-pin correspondence and can accommodate both DIP8 and SOIC-8 components. Available with an 8-pin DIP socket or a selection of audio op amps installed.
-
TA7136 Upgrade Adapter – 111002
Select optionsThe TA7136 op amp is a single channel op amp in a 7-pin SIL (single inline) package. The BrownDog 111002 adapter allows for the replacement of TA7136 op amps with modern single-channel op amps in either the SOIC-8 SMD package, or the 8-pin DIP package. Available with an 8-pin DIP socket or with a selection of single-channel audio op amps installed.
-
HA1457 Upgrade Adapter – 140901
Select optionsThe HA1457 op amp is a single-channel op amp in an 8-pin SIL (single inline) package that was produced by Hitachi for use in hi-fi audio. The BrownDog 140901 adapter replaces HA1457 (and HA12017) op amps with modern single-channel op amps in either the SOIC-8 or DIP8 package. Available with an 8-pin DIP socket or an OPA604 single-channel audio op amp installed.
-
SIL Single-to-dual Op-Amp Adapter – 040701
Add to cartThe BrownDog 040701 adapter maps the pins from two single-channel op amps in the SOIC-8 SMD package to the pinout of a dual-channel SIL (single inline) op amp with 8 pins in a single row. Both op amps (U1 and U2) mount to the front surface.
-
SIL Single-to-dual Op-Amp Adapter – 130801
Select optionsAdapts two 8-pin DIP or SOIC-8 op-amps to 8-pin SIL dual op-amp footprint.
